This guide explains how to navigate your FlipperMCE device using the buttons and menu system. Learn how to switch between cards, access settings, and customize your device.
Navigating Cards

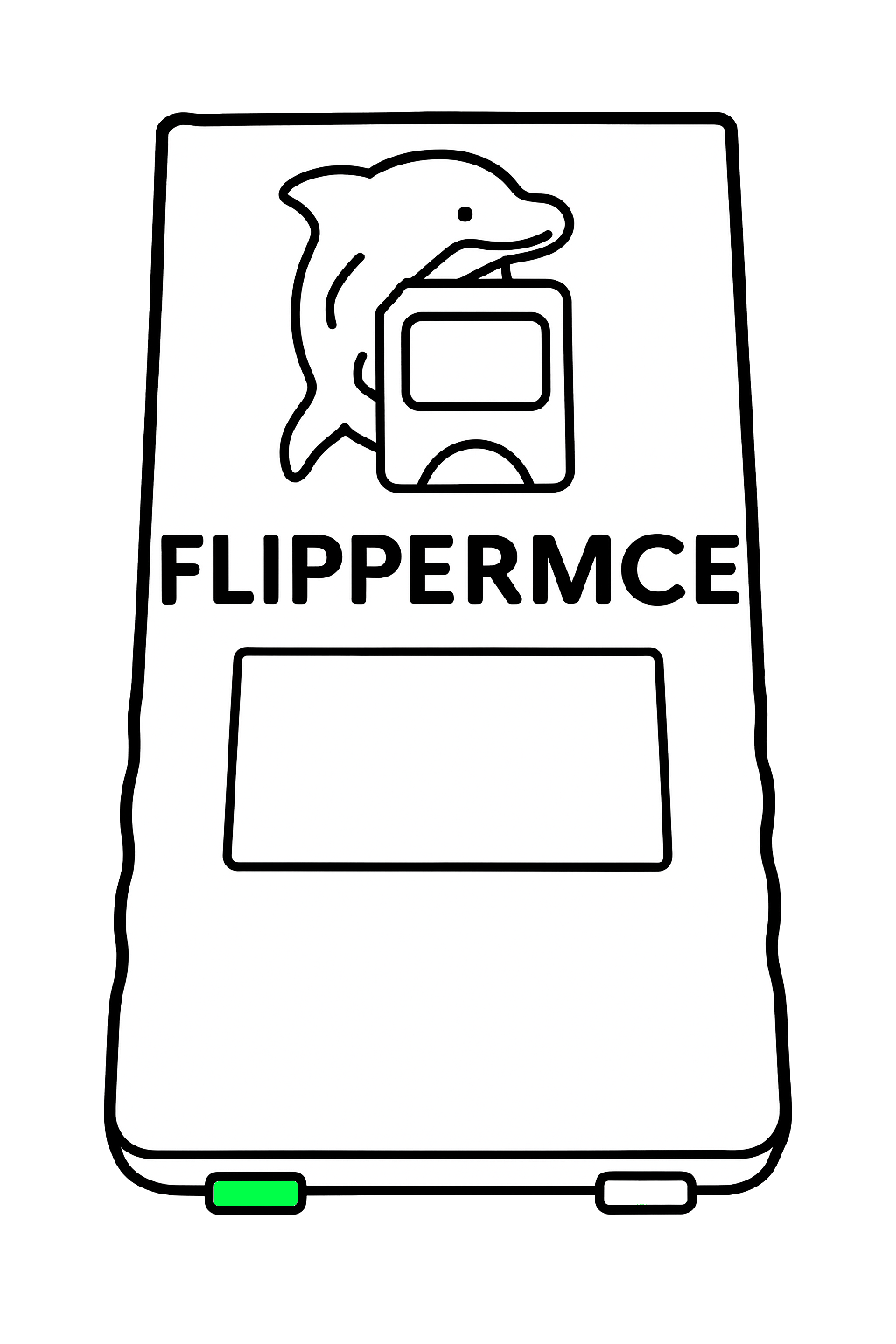

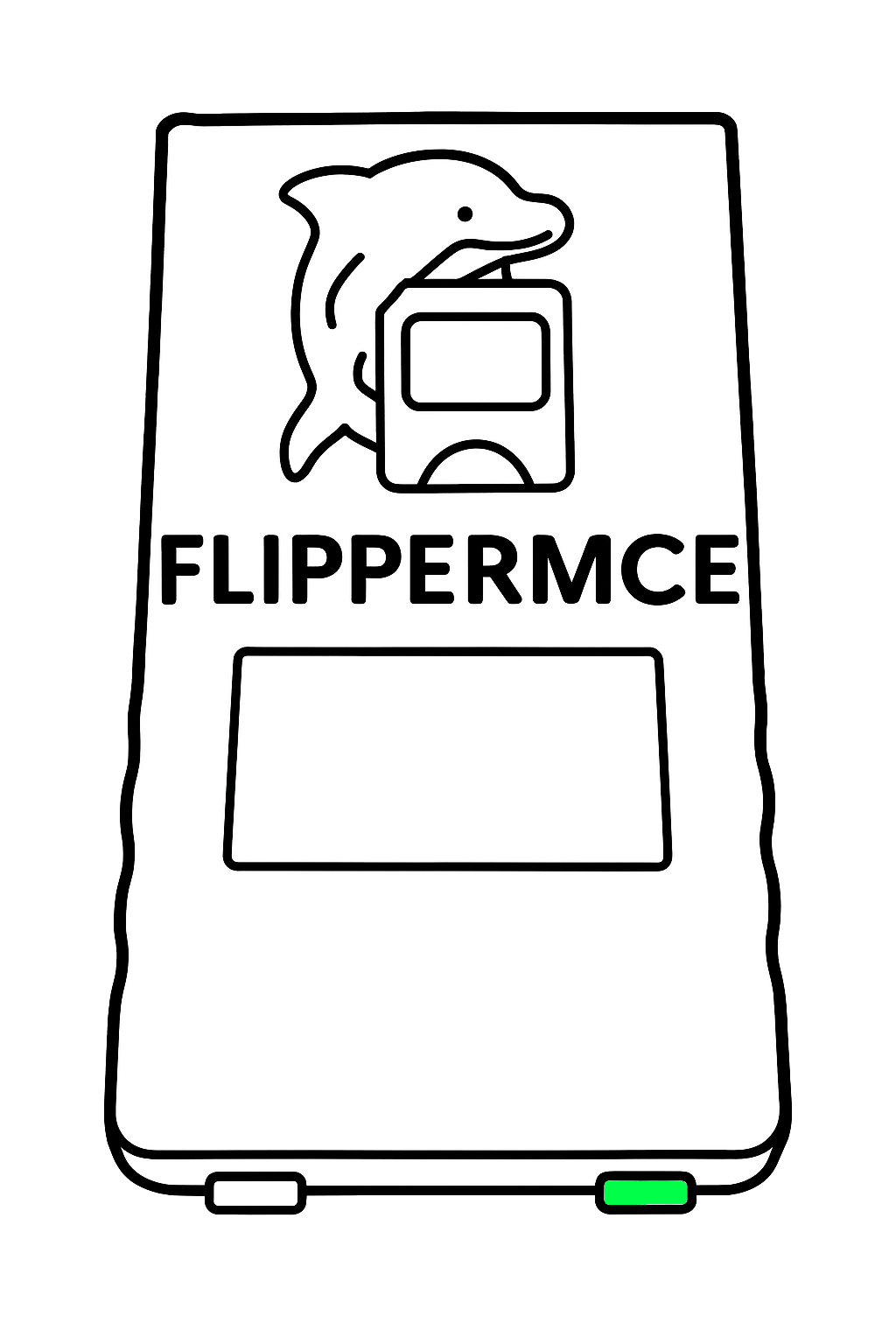

FlipperMCE provides simple button combinations to navigate through your memory card images:
| Action | Result |
|---|---|
| Short press | Switch card channel up/down |
| Long press | Switch card up/down |
Note: To access your named or GameID cards manually, switch your card down while on Card Index 1.
Opening the Menu

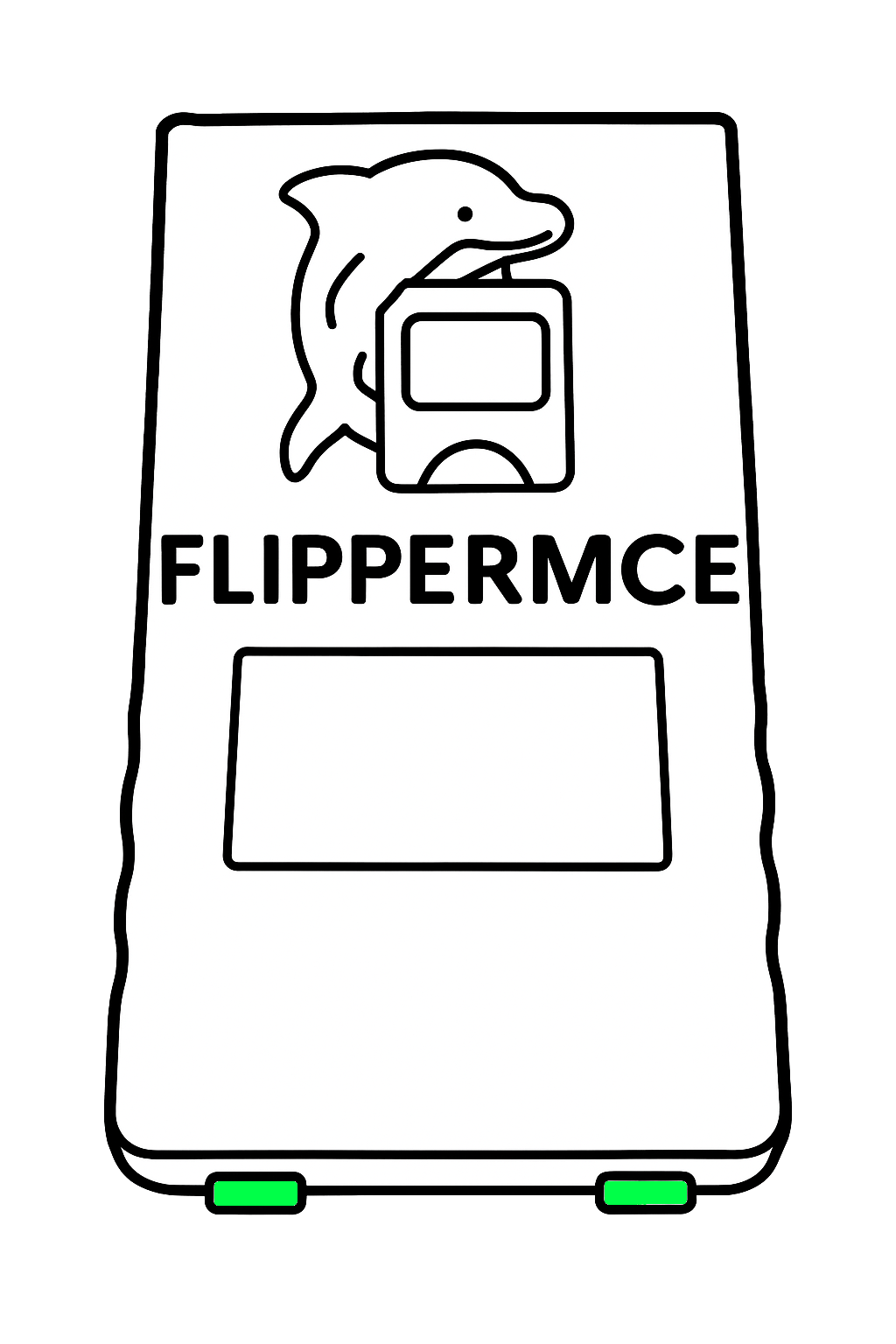

Press both buttons simultaneously to open the menu interface. This provides access to all device settings and information.
Navigating the Menu
| Action | Result |
|---|---|
| Short press left | Move up in menu |
| Short press right | Move down in menu |
| Long press right | Enter submenu/change value |
| Long press left | Go back |
Menu Items
Card Settings
Configure settings for newly created memory cards:
- Card Restore: Reload card from last session at startup
- Game ID: Create cards for each game transmitted to FlipperMCE
- Size: Select size of new card images (in blocks)
- Encoding: Choose Japanese or World encoding for new non-GameID cards
Display Settings
Customize your device's display:
- Auto Off: Enable display timeout to save power
- Contrast: Adjust display contrast
- Flip: Rotate display 180 degrees
- Show Info: Toggle card information on main screen
System Information
View technical details about your device:
- Version: Current firmware version (or nightly build)
- Commit: Git commit hash of current build
- Debug: Indicates if running a debug build
